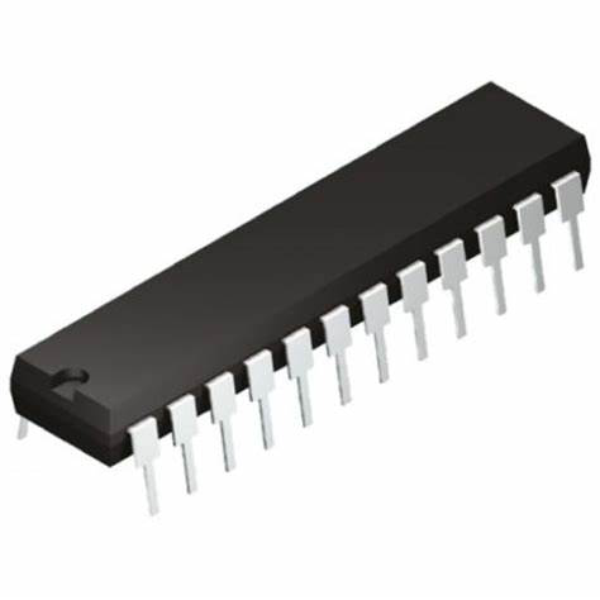

AD7714AWZ-5 24 BIT SERIAL ACD DIFFERENTIAL PSEUDO DIFFERENTIAL INPUT 24 PIN

Description: The AD7714AWZ-5 serves as a complete analogue front end for low-frequency measuring applications. It receives low-level signals from transducers and outputs serial digital words. The sigma-delta conversion approach ensures excellent resolution and no missing codes. The on-chip Programmable Gain Amplifier (PGA) can amplify input signals by factors ranging from 1 to 128. The ADC has both self-calibration and system calibration options, which ensures long-term accuracy and dependability. 24-Bit Resolution: Offers high-resolution, 24-bit conversion accuracy for exact measurements. Low Input Noise: Provides extraordinarily low input noise for precise signal conversion. Dual-Mode Operation: Can be adjusted for differential and pseudo-differential input modes, providing greater signal measuring versatility. Programmable Gain Amplifier (PGA): A programmable gain amplifier with strengths ranging from 1 to 128 improves signal conditioning. Low Power Consumption: The typical current consumption for efficient operation is 500µA. Three-Wire Serial Interface: Compatible with SPI, QSPI, MICROWIRE, and DSP interfaces, allowing for easier communication with microcontrollers and digital signal processors. Self-Calibration and System Calibration: Built-in calibration modes ensure accuracy throughout time and temperature changes. Serial Data Output: Converts data into serial digital format.
