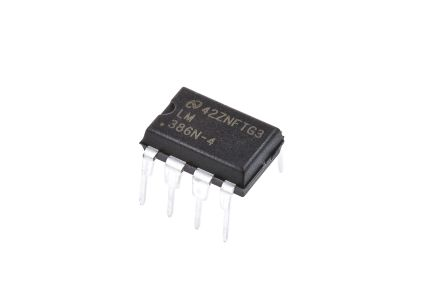

LM386N AUDIO AMPLIFIER 8 PIN

Description: The LM386N offers a straightforward solution for low-voltage audio amplification. It requires few external components to function, simplifying the design process and lowering overall component costs. The amplifier's gain can be readily modified by adding external resistors and capacitors, providing greater versatility in audio applications. Wide supply voltage range: Basic models operate between 4V and 12V, with some versions supporting up to 18V. adjusted Gain: The default voltage gains of 20 is adjusted up to 200 with external components, providing for more flexible amplification requirements. Low Quiescent Current: Consumes only 4mA, making it perfect for battery-operated applications. Low Distortion: Achieves high-quality audio output with a total harmonic distortion of only 0.2% at 6V and 125mW. Minimal External Components: Simplifies circuit design by requiring only a few external components. Self-Centred Output Quiescent Voltage: The output is automatically biased to one-half the source voltage, ensuring simple operation. Ground-Referenced Input: Stabilizes the input signal reference, which improves performance.
