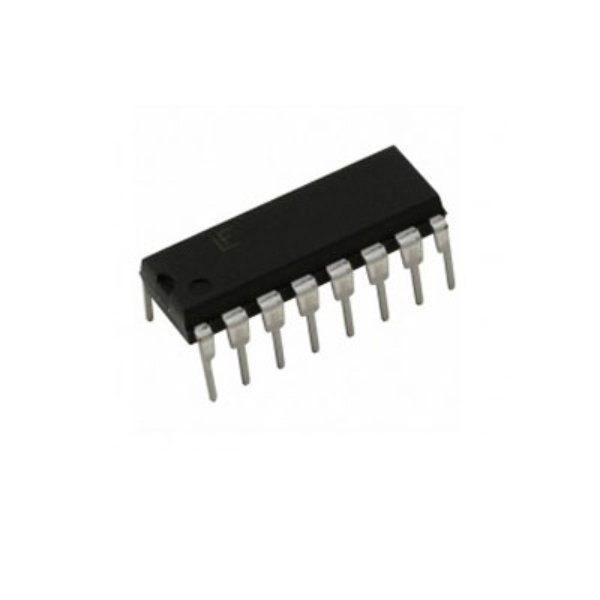

SP232ACP LINE TRANSCEIVER 5V 16 PIN

Description: The SP232ACP is intended to convert the logic levels of a microcontroller or microprocessor to the voltage levels required by the RS-232 standard while also supplying adequate driving current to the load. It features an integrated charge pump, which eliminates the need for two power supplies. The device's low power consumption and built-in ESD protection make it reliable for many serial communication applications. Two Transmitters and Two Receivers: Contains two independent line drivers (transmitters) and two-line receivers, allowing for full-duplex communication. RS-232 Compatibility: Conforms to all RS-232 and ITU V.28 standards, making it ideal for a wide range of serial communication applications. Single Supply Voltage: Works with a single +5V power supply. High Data Rate: Supports data rates of up to 120kbps while under load. Low Power Consumption: Designed to consume little power while maintaining high performance. Small Ceramic Capacitors: Uses 0.1µF external charge pump capacitors to reduce overall component count. ESD Protection: Includes ±2kV Human Body Model ESD protection. Pin-to-Pin Compatibility: Uses industry-standard pinouts for easy integration into existing designs.
