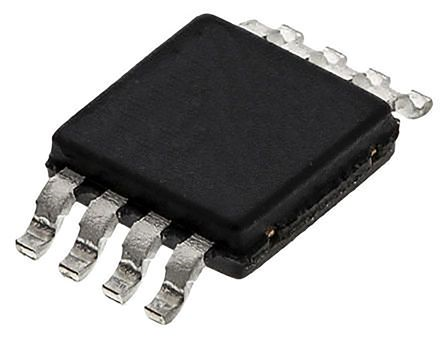

LM2936NM-3.3/NOPB LDO REGULATOR 50MA 33V 8 PIN

Description: The LM2936NM-3.3/NOPB is intended to deliver a regulated 3.3V output with excellent precision and low dropout. It has a built-in pass transistor that changes the output voltage by changing its resistance to match the input voltage minus the dropout value. The device's low quiescent current and strong PSRR allow efficient and stable operation even with varying input circumstances. The regulator's sturdy construction contains numerous safety features to prevent against common electrical problems including overheating, reverse polarity, and short circuits. The low quiescent current (about 15µA) makes it appropriate for battery-powered and energy-efficient applications. Wide Input Voltage Range: Operates from 4V to 40V inputs, providing flexibility. Low Dropout Voltage: The maximum dropout voltage is 0.4V at 50mA, ensuring effective operation even at lower input voltages. High Power Supply Rejection Ratio (PSRR): 60dB (120Hz), ensuring a clean, reliable output even when the input voltage fluctuates. Over-temperature, reverse polarity, and short circuit protection are included to improve reliability. Stable with Low ESR Capacitors: Provides stability when using low equivalent series resistance capacitors.
