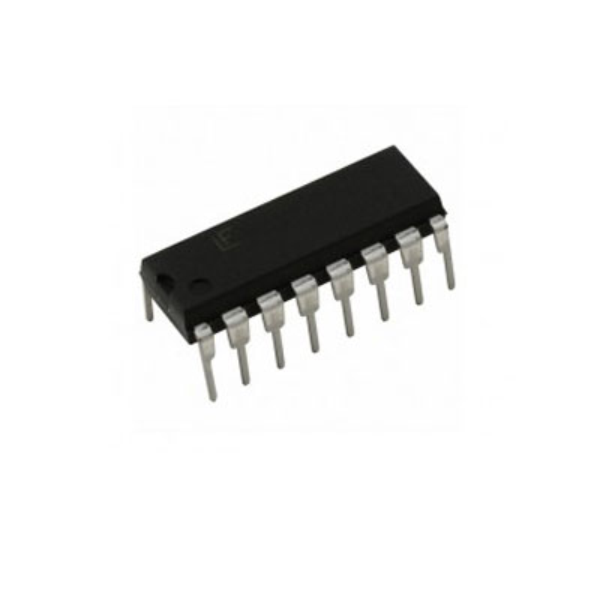

MC14017B 5 STAGE DECADE COUNTER 3 - 18V

Description: The MC14017B functions as a five-stage Johnson decade counter with 10 decoded outputs. The outputs change on the positive edge of the clock pulse. The carry-out output allows you to cascade several counters for bigger division counts. This device is ideal for frequency division, decade counter, and decimal decode display applications. Five-Stage Johnson Decade Counter: The built-in code converter generates 10 decoded outputs, which are generally low and rise at the appropriate decimal time interval. High-Speed Operation: Provides efficient performance with little power dissipation. Fully Static Operation: The clock input signal can have delayed rising times. Carry Out Output: Enables cascading for divide-by-N counting. Wide Supply Voltage Range: Operates between 3V and 18V, giving versatility for a variety of applications. Triple Diode Protection: All inputs are protected by three diodes to prevent static harm. CD4017B can be replaced with pin-compatible components in current designs.
