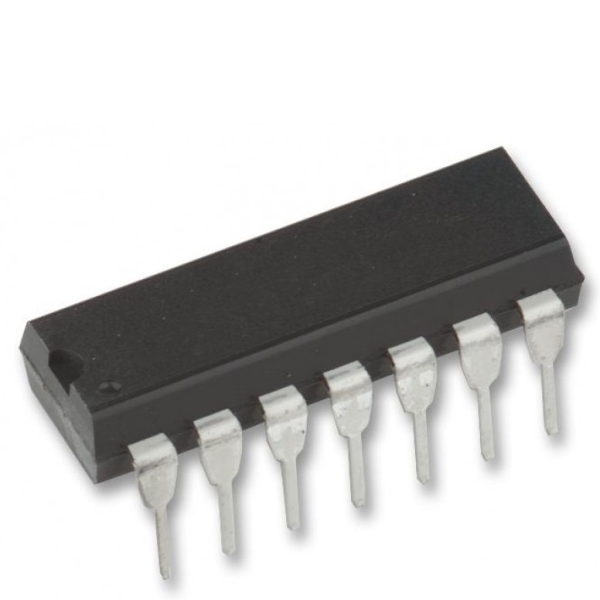

MC14077 QUAD 2 INPUT NOR LOGIC GATE 3 - 18V 14 PIN

Description: The MC14077 performs logic functions using four independent 2-input NOR gates. Each gate generates a low signal only when both inputs are high, allowing for greater flexibility in the implementation of complex logic circuits. The device's wide voltage range and good noise immunity make it suitable for a variety of digital applications. Quad NOR Gates: consists of four independent 2-input NOR gates. Wide Operating Voltage Range: Operates between 3V and 18V, making it appropriate for a variety of applications. Low Power Consumption: Has a low quiescent current, increasing efficiency. High-Speed Operation: Provides quick response times with minimal propagation delays. Fully Static Operation: Clock input signals can have slow rising times. High noise immunity: Provides better performance in loud conditions. Pin-Compatible Replacement: Suitable for replacing similar NOR gates in current designs.
