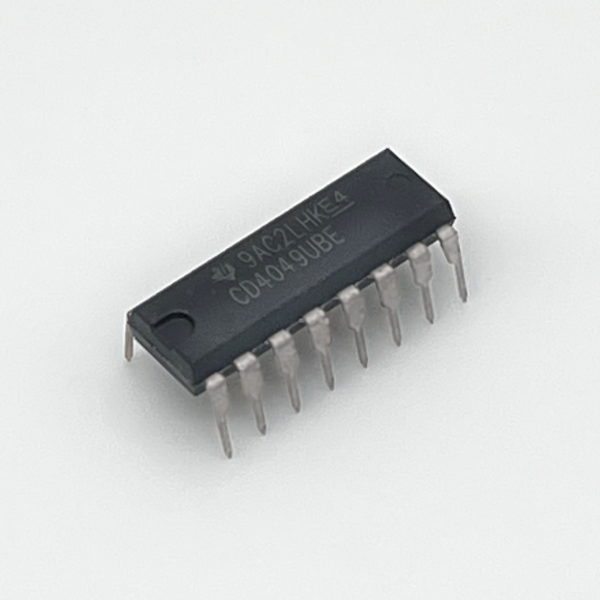

CD4049UBE 0.5-20V 16Pin HEX CMOS
SKU: INC-0121-C05
Sold by Select Automation
Final price R 13.26
R 11.53 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The CD4049UBE is a hex inverting buffer and converter created by Texas Instruments.
It has a voltage range of 0.5V to 20V and comes in a 16-pin PDIP package.
The CD4049UBE can execute a wide range of tasks, including logic-level conversions and driving multiple digital input loads.
Its high input impedance and low quiescent current make it ideal for battery-powered devices.
Hex Inverting Buffers: There are six independent inverting buffers.
Wide supply voltage range of 0.5V to 20V.
High input impedance means minimal current (usually 1μA at 18V).
The low quiescent current of 4μA (max) makes it ideal for low-power applications.
Temperatures range from -55°C to 125°C.
This IC is commonly used in applications that require high gain, frequency compensation, and voltage level shifting.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Voltage Range (Vcc): 0.5-20V.
Number of Circuits: 6.
Number of Inputs: 1 per inverter.
Package Type: 16-pin PDIP (Plastic Dual In-Line Package).
Input Current: 1 μA (max) at 18V.
Quiescent Current: 4 μA (max).
Output Current High: 4.3mA.
Output Current Low: 24mA.
Operating Temperature Range: -55°C to 125°C.
