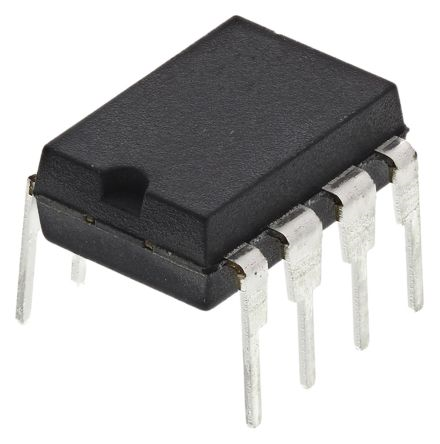

LM358N ON SEMICONDUCTOR OP AMP 20KHZ 3 - 32V 8 PIN
SKU: INC-0123-C05
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A multipurpose operational amplifier, the LM358N was created by ON Semiconductor.
It includes two separate, high-gain, internally frequency-compensated op-amps that are appropriate for a variety of analogue signal processing applications.
Low power consumption is ideal for battery-powered gadgets.
Wide operating voltage range: Ideal for a variety of applications.
High input impedance: ensures low current draw.
Internally compensated: For improved stability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Frequency Response: 20 kHz.
Voltage Range (Vcc): 3V to 32V.
Package Type: 8-pin DIP (Dual In-Line Package).
Input Common-Mode Voltage Range: Includes ground.
Differential Input Voltage Range: Equal to power supply voltage.
Low Supply Current Drain: 0.7mA per amplifier.
Input Offset Voltage: 2 mV.
Input Bias Current: 45 nA.
Slew Rate: 0.3 V/µs.
Gain Bandwidth Product: 1 MHz.
Output Voltage Swing: 0V to (Vcc - 1.5V).
Temperature Range: 0°C to 70°C.
