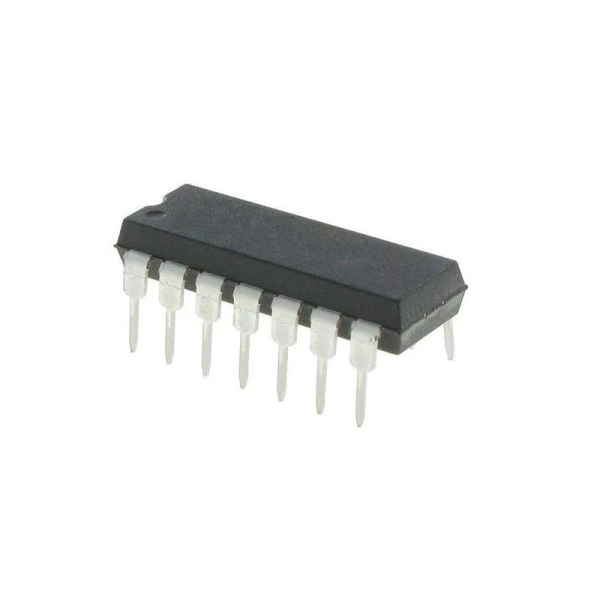

MC14081B QUAD 2 INPUT AND LOGIC GATE 3 - 18 V 14 PIN
SKU: INC-0124-C05
Sold by Select Automation
Final price R 16.79
R 14.60 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ON Semiconductor invented the MC14081B, a CMOS quad 2-input AND logic gate.
Quad 2-Input AND Gates: Four separate dual-input AND gates.
Buffered outputs can drive low-power TTL or Schottky TTL loads.
High Noise Immunity: Provides dependable performance even in noisy conditions.
In logic circuits that need AND functionalities, including those found in digital circuit design, signal processing, and other applications requiring logic-level manipulation, this integrated circuit is frequently utilized.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Voltage Range (Vcc): 3V to 18V.
Package Type: 14-pin DIP (Dual In-Line Package).
Input Voltage (High): 3.5V minimum (at 5V Vcc).
Input Voltage (Low): 1.5V maximum (at 5V Vcc).
Low-Level Output Current: 8.8mA (max) (across temperature range).
High-Level Output Current: 8.8mA (max).
Propagation Delay Time: 200 ns at 10V.
Temperature Range: -55°C to 125°C.
