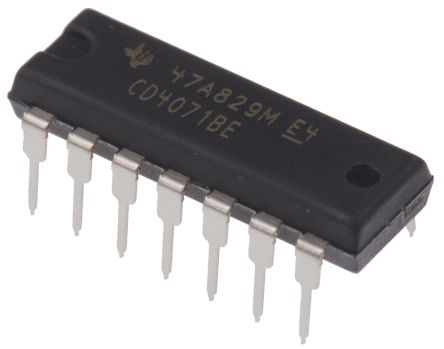

CD4071BE QUAD 2 INPUT LOGIC GATE 3 - 18V 14 PIN
SKU: INC-0125-C05
Sold by Select Automation
Final price R 11.99
R 10.43 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments designed the CD4071BE, a CMOS quad 2-input OR logic gate.
Quad 2-Input OR Gates: Contains four separate dual-input OR gates.
High Noise Immunity: Works reliably even in noisy surroundings.
Double diodes safeguard the inputs.
This IC is commonly utilized in digital logic applications, such as signal processing and digital circuit design, that require OR logic functionalities.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Voltage Range (Vcc): 3V to 18V.
Package Type: 14-pin PDIP (Plastic Dual In-Line Package).
Input Voltage (Low): 1.5V to 4V (at 5V Vcc).
Input Voltage (High): 3.5V to 11V (at 5V Vcc).
Low-Level Output Current: 3.4mA (max).
High-Level Output Current: 3.4mA (max).
Propagation Delay Time: 90 ns (at 15V).
Temperature Range: -55°C to 125°C.
