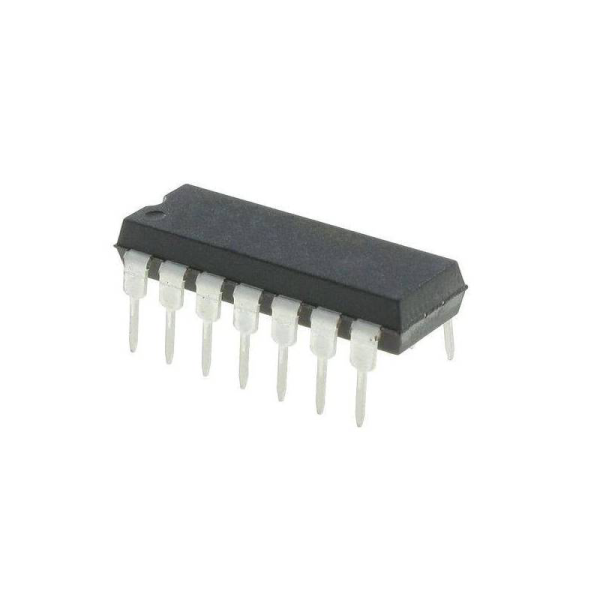

CD4073BE TRIPLE 3 INPUT AND LOGIC GATE 3 - 18V 14 PIN
SKU: INC-0126-C06
Sold by Select Automation
Final price R 7.35
R 6.39 excl. VAT
Availability: In Stock (7 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments invented the CD4073BE, a CMOS triple 3-input AND gate. This IC contains three separate 3-input AND gates on a single 14-pin PDIP.
Triple 3-Input AND Gates: Supports multiple logical AND operations in a single package.
Voltage Range: Operates between 3V to 18V, making it suitable for a variety of power supply levels.
Double diode protection is installed on all inputs to increase dependability and guard against voltage spikes.
Wide Voltage Range: Because of its wide operational voltage range, it may be used in a variety of circuit designs.
High Noise Immunity: Provides steady performance even in electrically loud conditions.
Low electricity Consumption: Requires less electricity, making it excellent for battery-powered devices.
Low Propagation Delay: Enables rapid response times for high-speed applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Voltage Range (Vcc): 3V to 18V.
Package Type: 14-pin PDIP (Plastic Dual In-Line Package).
Input Voltage (Low): 1.5V to 4V (at 5V Vcc).
Input Voltage (High): 3.5V to 11V (at 5V Vcc).
Quiescent Current: 1 µA (max).
Output Current (High/Low): 3.4mA.
Propagation Delay Time: 90ns (at 15V).
Temperature Range: -55°C to 125°C.
