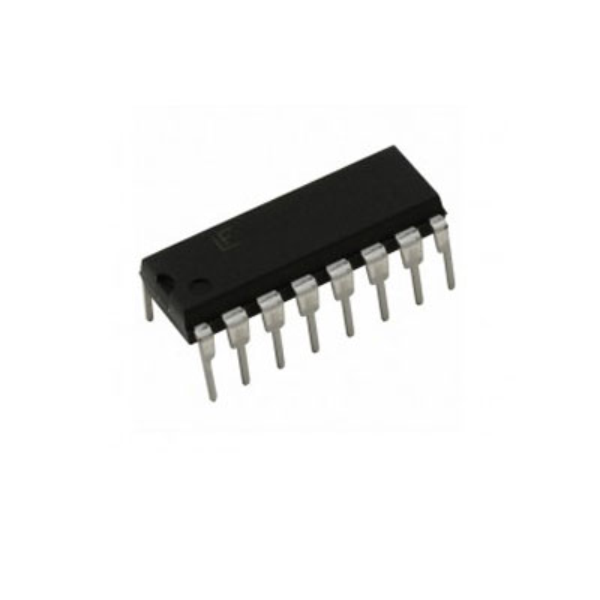

SG3524N DUAL PWM VOLTAGE MODE CONTROLLER 100MA 16 PIN

Description: Dual PWM (Pulse Width Modulation) voltage mode controller SG3524N is a powerful and adaptable device from STMicroelectronics. This integrated circuit is commonly used for power supply and voltage regulation applications. Dual PWM Controller: Features two separate PWM channels for fine control over complex power management duties. Voltage Mode Control: Ensures that the output voltage is consistent and stable by accurate voltage management. Built-in features include inbuilt error amplifiers for each channel to improve voltage accuracy and stability, a shutdown pin for low-power mode, and full short-circuit protection. Wide Voltage Range: Works successfully between 8V and 40V, making it appropriate for a wide range of applications. High Output Current: Provides up to 100mA per channel, meeting a variety of power supply requirements. High Switching Frequency: Supports switching frequencies of up to 300 kHz, making it excellent for high-speed electrical regulation. Adjustable Duty Cycle: The duty cycle may be adjusted up to 49%, providing for more precise control over output signals. Low rise and fall times provide efficient performance, with a rise time of 200ns and a fall time of 100ns.
