IC EPROM DC F2708 8101 1034
SKU: INC-0137-C06
Sold by Select Automation
Final price R 6.00
R 5.22 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

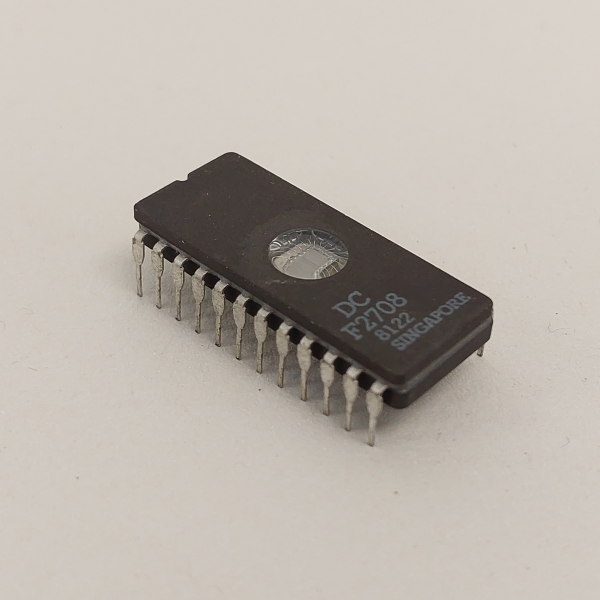

Fairchild Semiconductor produced the F2708, a UV-erasable and electrically reprogrammable read-only memory (EPROM) chip.
It is designed to hold 1024 x 8 bits of data, making it appropriate for applications such as microprocessor systems where reprogram ability and non-volatile memory storage are required.
Reprogrammable: Can be deleted with UV light and reprogrammed.
Three-State Outputs: Allows for high-impedance states, which facilitates bus sharing.
TTL Compatible: Input and output levels are compatible with TTL logic.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Memory Capacity: 1024 x 8 bits (8,192 bits).
Access Time: 450 ns.
Supply Voltage: +12V (programming), +5V (operation), -5V (operation).
Programming Voltage: 12.75V.
Data Retention: 10 years minimum.
Endurance: 100 erase/write cycles (minimum).
Technology: NMOS Technology.
Package Type: 24-pin DIP.
Temperature Range: 0°C to 70°C (operating), -65°C to 150°C (storage).
