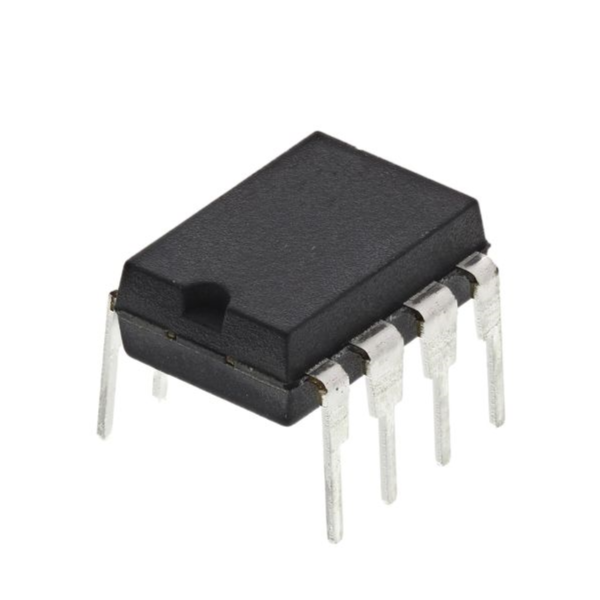

TL7705ACP VOLTAGE SUPERVISOR 0-10V 8 PIN PDIP

Description: Texas Instruments designed the TL7705ACP, a voltage supervisor IC. It monitors power supply voltages and generates reset signals to guarantee that microprocessor systems operate properly. Voltage Supervisor IC. Input voltage range: 0 to 10 volts. Threshold voltage: 4.55V. Package type: 8-pin PDIP (Plastic Dual Inline Package). The output type is either open drain or open collector. Reset Active: Can be set to Active High or Active Low. Reset Timeout: Maximum propagation delay is 1µs. The operating temperature range is from 0°C to 70°C. Supply Voltage: Ranges from 4.5 to 18V. Monitoring Voltages: Capable of monitoring a single voltage line. Current consumption: 1.8 mA. Programmable features include a manual reset input and a programmable reset delay period. The TL7705ACP monitors power supply levels and manages reset procedures to ensure that systems start up and function properly. When the measured voltage falls below the threshold (4.55V), the IC sends a reset signal, preventing the microprocessor or system from booting up or continuing to run in an unstable state. The 8-pin PDIP packaging makes it simple to integrate into diverse circuits, particularly during the development and prototyping stages.
