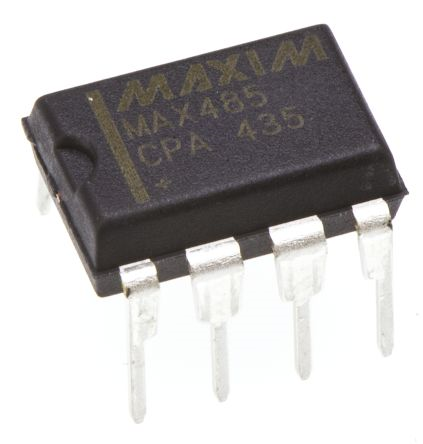

MAX485CPA+ LINE TRANSCEIVER RS-422 RS-485 5V 8 PIN
SKU: INC-0150-C06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The MAX485CPA+ is a sophisticated, low-power RS-422/RS-485 transceiver created by Analog Devices / Maxim Integrated.
This transceiver is designed to provide dependable data transfer in difficult, loud settings, making it an ideal solution for industrial automation and other demanding applications.
Low power consumption: With a quiescent current of 300 µA, it's ideal for power-sensitive applications.
High Data Rate: Supports data transfer speeds of up to 2.5 Mbps, guaranteeing fast connection.
Half Duplex Communication: Supports bidirectional data transfer, but only in one direction at a time.
Noise immunity ensures reliable data transfer even in electrically loud surroundings.
Short-Circuit protective: Built-in protective systems prevent harm from short circuits.
Thermal Shutdown: Protects the IC from overheating by shutting down automatically when temperatures get too high.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Manufacturer: Analog Devices / Maxim Integrated.
Type: RS-422 / RS-485 Transceiver.
Package Type: 8-pin PDIP (Plastic Dual In-line Package).
Voltage Supply Range: 4.75V to 5.25V.
Data Rate: Up to 2.5 Mbps.
Operating Temperature: 0°C to 70°C.
Quiescent Current: 300 µA.
Driver/Receiver: 1 Driver and 1 Receiver.
Half Duplex: Allows bidirectional communication but one direction at a time.
Short-Circuit Protection: Built-In.
Thermal Shutdown: Yes.
ESD Protection: ±15kV Human Body Model.
Input Impedance: 12 kΩ (minimum).
Output Voltage Swing: ±1.5V minimum (on common-mode range).
Enable/Disable Time: 200 ns enabling/disabling transmitter.
Propagation Delay: 150 ns (maximum at 1.5 Mbps).
