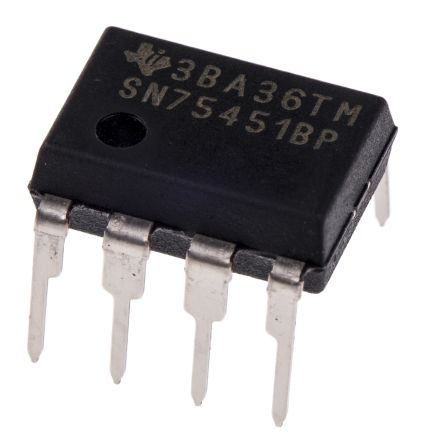

SN75451BP DEVICE DRIVER DUAL 8 PIN
SKU: INC-0151-C07
Sold by Select Automation
Final price R 15.38
R 13.37 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments invented the SN75451BP, a dual peripheral driver.
It connects TTL (Transistor-Transistor Logic) logic outputs to high-voltage, high-current loads such lamps, relays, and solenoids.
Type: Dual Peripheral Driver.
The output type is Open Collector.
Number of Drivers and Channels: 2.
Output current is 300 mA per channel.
Input current: 100 µA (typical TTL input levels).
Output voltage ranges from 4.75 to 5.25 volts.
Supply voltage ranges from 4.75 to 5.25 volts.
Package type is 8-pin PDIP (Plastic Dual In-line Package).
Coupling: Direct connection to TTL and CMOS.
Pull-down Resistor: Integrated.
Temperature range is 0°C to 70°C (commercial grade).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Manufacturer: Texas Instruments.
Type: Dual Peripheral Driver.
Driver Channels: 2.
Output Type: Open Collector.
Output Current: 300mA per channel.
Input Current: 100µA (standard TTL input levels).
Operating Voltage Range: 4.75V to 5.25V.
Supply Voltage: 4.75V to 5.25V.
Package Type: 8-pin PDIP (Plastic Dual In-line Package).
Operating Temperature: 0°C to 70°C (commercial grade).
Rise Time: 0.5µs.
Fall Time: 0.5µs.
Pull-down Resistor: Integrated.
Power Dissipation: 500mW (total for both drivers).
