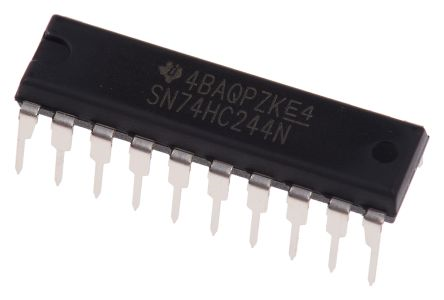

SN74HC244N OCTAL BUFFER AND LINE DRIVER 3 STATE 2 - 6V 20 PIN
SKU: INC-0152-C07
Sold by Select Automation
Final price R 30.89
R 26.86 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments designed the SN74HC244N, an octal buffer and line driver with three state outputs.
This integrated circuit is perfect for enhancing the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
Wide Operating Voltage Range: The SN74HC244N runs from 2V to 6V.
High-Current Outputs: Can drive up to 15 LSTTL loads.
Low Power Consumption: At 5V, it consumes only 80 µA, making it extremely efficient.
3-State Outputs: This makes it perfect for bus-oriented applications in which numerous components can share bus lines.
distinct Output-Enable Inputs: Two 4-bit buffers/drivers are configured with distinct OE (Output Enable) inputs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Manufacturer: Texas Instruments.
Type: Octal Buffer and Line Driver.
Output Type: 3-State.
Number of Channels: 8.
Voltage Supply Range: 2V to 6V.
Package Type: 20-pin PDIP (Plastic Dual In-line Package).
Operating Temperature: -40°C to 85°C.
Current Consumption: 80 µA (Maximum at 5V).
Output Drive Current: ±6 mA at 5V.
Propagation Delay: 11 ns at 5V.
Input Leakage Current: ±1 µA (Maximum).
Noise Margin: 1.5V.
