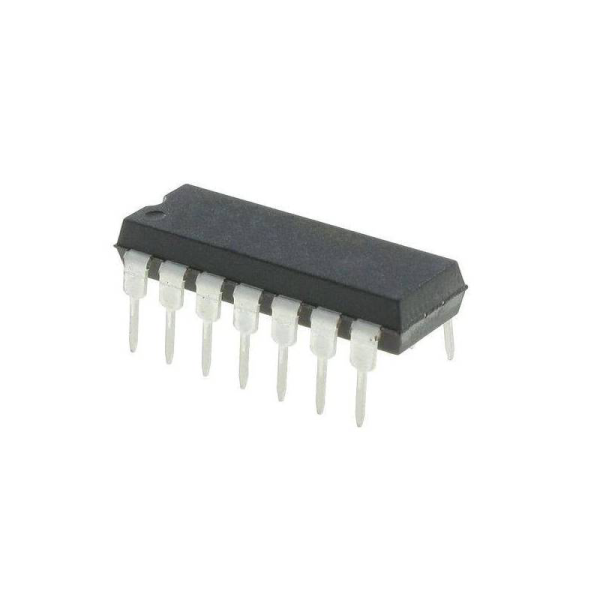

GD4069UB INVERTER HEX CMOS 14 PIN
SKU: INC-0153-C07
Sold by Select Automation
Final price R 6.83
R 5.94 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The CD4069UB is a flexible CMOS hex inverter.
It's intended for a wide variety of applications, including efficient logic inversion, pulse shaping, and oscillation.
Its wide working voltage range and low power consumption make it an ideal choice for a variety of logic applications.
The CD4069UB's symmetrical output properties, high input impedance, and robust ESD protection make it ideal for a wide range of logic circuit designs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Manufacturer: Texas Instruments / InterFET.
Type: Hex Inverter CMOS.
Package Type: 14-pin DIP (Dual In-line Package).
Pin Count: 14 pins.
Voltage Supply Range: 3V to 18V.
Maximum Input Current: 1µA at 18V.
Propagation Delay: 30ns at 10V.
Operating Temperature: -55°C to +125°C.
Quiescent Current: 100nA at 25°C.
Output Characteristics: Symmetrical.
ESD Protection: ±2kV HBM (Human Body Model).
