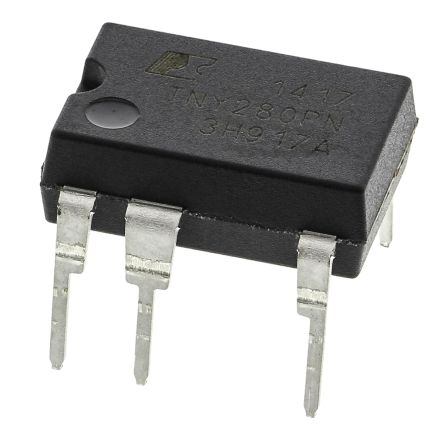

TNY280PN INTELLIGENT POWER SWITCH OFF LINE SWITCHER 36.5W 7 PIN
SKU: INC-0154-C07
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The TNY280PN is an intelligent power switch created by Power Integrations.
This device combines a high-voltage power MOSFET, oscillator, and controller to provide a cost-effective and efficient solution for offline power supply applications.
Output power is up to 36.5W.
Input voltage ranges from 85 to 265 VAC.
Breakdown voltage: 700 volt.
Operating temperature range is -40°C to +150°C.
The control scheme is simple: ON/OFF.
Frequency Jittering: Reduces electromagnetic interference (EMI).
Current limit can be selected.
Overtemperature Protection.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Output Power: Up to 36.5W.
Input Voltage Range: 85 to 265 VAC.
High-Voltage Power MOSFET Breakdown Voltage: 700V.
Control Configuration: Simple ON/OFF control mechanism.
Frequency: 132 kHz.
Performance:
Efficiency: High energy efficiency due to low standby power.
Operating Temperature Range: -40°C to +150°C.
EMI Control: Frequency jittering to reduce electromagnetic interference.
Protection Features:
Overtemperature Protection: Automatically shuts down to prevent damage due to overheating.
Short-Circuit Protection: Protects the device and connected components from short circuits.
Overcurrent Protection: Limits current to prevent damage to the device and load.
Mechanical:
Package Type: 7-Pin PDIP (Plastic Dual In-line Package).
Dimensions: Standard 7-pin PDIP dimensions.
