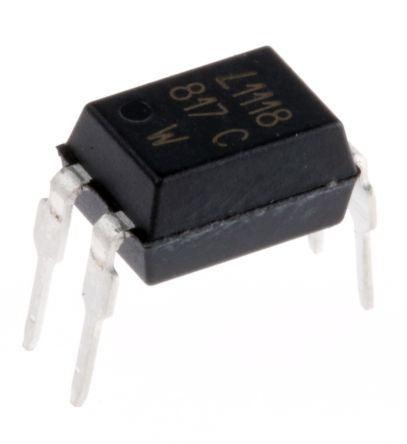

LTV-817C DC INPUT TRANSISTOR OUTPUT OPTCOUPLER THROUGH HOLE 4 PIN
SKU: INC-0155-C07
Sold by Select Automation
Final price R 5.47
R 4.76 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The LTV-817C is a DC input transistor output optocoupler manufactured by Lite-On Technology.
This component is often employed in electrical circuits to isolate distinct portions by optical means, assuring protection and noise-free operation.
Input type: DC.
Output type: transistor.
Number of pins: four
Package type: 4-DIP (Through Hole).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Isolation Voltage: 5000Vrms to ensure high-level isolation.
Current Transfer Ratio (CTR): Typically, 200% to 400% at 5mA.
Forward Voltage (Vf): Approximately 1.2V.
Output Voltage (Vce): Maximum 35V.
Output Current (Ic): Maximum 50mA.
Saturation Voltage (Vce(sat)): Maximum 200mV.
