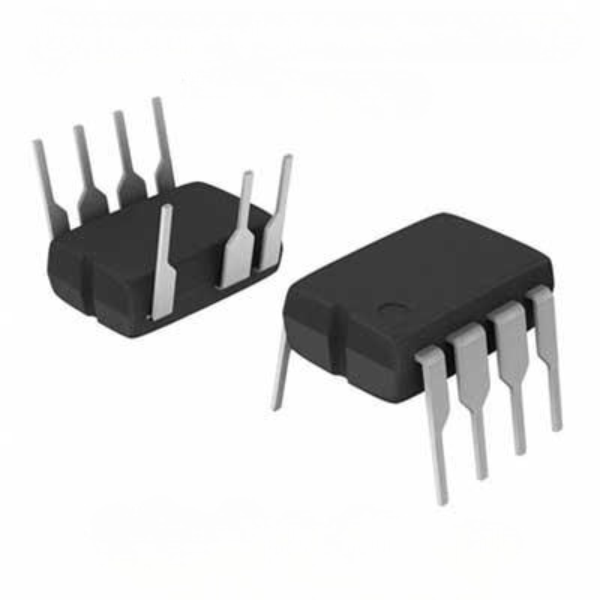

TNY290PG AC-DC CONVERTER MINIMUM OF 50V 7 PIN
SKU: INC-0156-C07
Sold by Select Automation
Final price R 59.87
R 52.06 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The TNY290PG is an AC-DC converter from Power Integrations' TinySwitch-4 series.
This component is noted for its high efficiency and small design, making it suitable for a variety of power supply applications.
Output Voltage: Minimum 50V.
Pins: 7
Package type: DIP (Dual In-line Package).
Control Scheme: Simple on/off control
Frequency Jittering: Reduces Electromagnetic Interference (EMI).
Auto-restart: Provides less than 3% of maximum power under short-circuit and open-loop fault scenarios.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Input Voltage Range: 85 to 265 VAC.
High-Voltage Power MOSFET Breakdown Voltage: 700V.
Power Conversion Efficiency: High energy efficiency, especially under no-load and light-load conditions.
No-load Power Consumption: Less than 30mW with a bias winding and less than 150mW at 265 VAC without a bias winding.
Protection Features:
Overtemperature Protection: Ensures the device shuts down in case of excessive temperature.
Short-Circuit Protection: Protects against short circuits.
Overcurrent Protection: Limits current to prevent damage.
