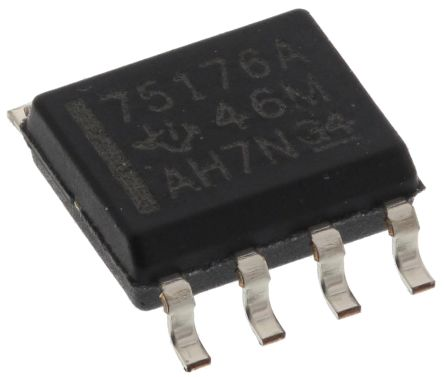

SN75176AD LINE TRANSCEIVER RS-485 8V 8 PIN
SKU: INC-0157-C07
Sold by Select Automation
Final price R 25.37
R 22.06 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
A Texas Instruments RS-485 line transceiver, the SN75176AD is intended for bidirectional data transfer across multipoint bus-transmission lines.
Because of its reliable performance, this device is widely utilized in communication networks and industrial settings.
Bidirectional transceiver is designed for multipoint data transfer.
Pins: 8-pin SOIC box.
Operating Voltage Range: Typically uses a single 5V supply.
3-State Driver and Receiver Outputs: Enables multiplexed busses
Driver Output Capability: ±60mA.
Thermal shutdown protection: prevents overheating.
Meets ANSI standards. Complies with EIA/TIA-422-B and ITU Recommendation V.11.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Operating Voltage Range: 4.75V to 5.25V.
Driver Output Voltage: -7V to +12V.
Driver Output Current: ±60mA.
Driver Positive Current Limiting: 60mA.
Driver Negative Current Limiting: -60mA.
Receiver Characteristics:
Input Impedance: Minimum 12 kΩ.
Input Sensitivity: ±200mV.
Input Hysteresis: Typical 50mV.
Low-Level Output Voltage (VOL): Maximum 0.45V at IOL = 8mA.
High-Level Output Voltage (VOH): Minimum 2.4V at IOH = -0.8mA.
Performance:
Propagation Delay Time (Low to High): 19ns.
Propagation Delay Time (High to Low): 16ns.
Differential Output Delay: 2ns.
Differential Output Voltage: 2.3V at 375Ω load.
Protection Features:
Thermal Shutdown Protection: Activates to prevent overheating.
Short-Circuit Protection: Protects both driver and receiver outputs.
Common-Mode Rejection Ratio (CMRR): Excellent noise immunity.
Environmental:
Operating Temperature Range: -40°C to +85°C.
Storage Temperature Range: -65°C to +150°C.
