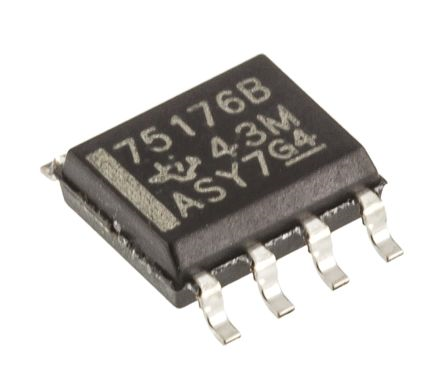

SN75176BD LINE TRANSCEIVER RS485 5V 8 PIN
SKU: INC-0158-C07
Sold by Select Automation
Final price R 31.67
R 27.54 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments' SN75176BD differential bus transceiver is designed for long-distance, reliable communication in noisy conditions.
This gadget is well-known for its efficient performance and dependability in industrial and commercial settings.
Bidirectional Transceiver: Enables multipoint data transfer.
Differential Data Transmission and Reception ensures data integrity over long distances.
3-State Outputs: Allows for the connection of numerous transceivers on a single line.
Current Limiting: Protects the driver and receiver during high-current situations.
Thermal Shutdown Protection: Automatically prevents the device from overheating.
Fully compliant with the EIA/TIA-485 (RS-485) and ISO 8482 (RS-422) standards.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Operating Voltage Range: 4.75V to 5.25V.
Driver Output Voltage: -7V to +12V.
Driver Output Current: ±60mA.
Driver Positive Current Limiting: 60mA.
Driver Negative Current Limiting: -60mA.
Receiver Characteristics:
Input Impedance: Minimum 12 kΩ.
Input Sensitivity: ±200mV.
Input Hysteresis: 50mV.
Low-Level Output Voltage (VOL): Maximum 0.45V at IOL = 8mA.
High-Level Output Voltage (VOH): Minimum 2.4V at IOH = -0.8mA.
Performance:
Propagation Delay Time (Low to High): 19ns.
Propagation Delay Time (High to Low): 16ns.
Differential Output Delay: 2ns.
Differential Output Voltage: 2.3V at 375Ω load.
Protection Features:
Thermal Shutdown Protection: Activates to prevent overheating.
Short-Circuit Protection: Protects both driver and receiver outputs.
Common-Mode Rejection Ratio (CMRR): Excellent noise immunity.
Environmental:
Operating Temperature Range: 0°C to +70°C.
Storage Temperature Range: -65°C to +150°C.
