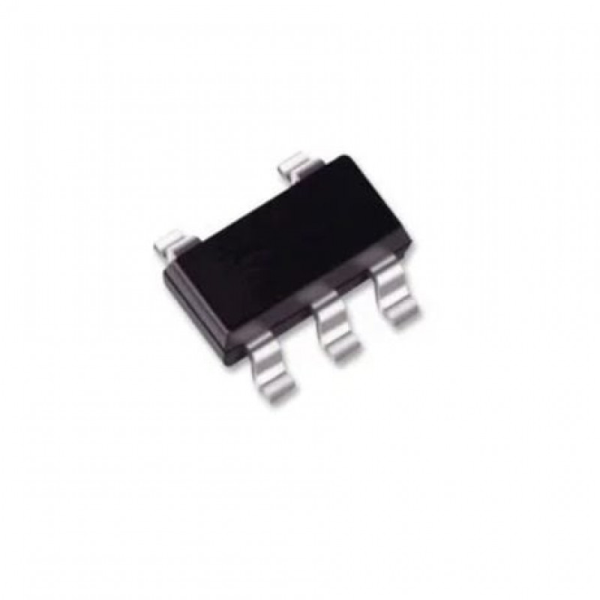

MCP73831T-2ATI/OT LITHIUM-ION POLYMER BATTERY CHARGE CONTROLLER 500mA 5 PIN
SKU: INC-0159-C07
Sold by Select Automation
Final price R 17.46
R 15.18 excl. VAT
Availability: In Stock (15 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Microchip Technology's MCP73831T-2ATI/OT is a charge controller for lithium-ion/lithium-polymer batteries.
This tiny controller is intended to efficiently regulate the charging process of single-cell lithium-ion or lithium-polymer batteries.
Input voltage ranges from 3.75V to 6V2.
Maximum charge current is 500 mA.
Package type: 5-Pin SOT-23.
Constant Current/Constant Voltage (CC/CV) Charging: Provides safe and efficient battery charging.
High regulation accuracy of ±0.75% for voltage regulation.
Integrated pass transistor simplifies design.
Integrated Current Sensing: Improves accuracy.
Reverse Discharge Protection: Prevents battery discharge via the charger.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Input Voltage Range: 3.75V to 6V.
Maximum Output Current: 500mA2.
Charge Voltage Options: 4.2V, 4.35V, 4.4V, 4.5V.
Accuracy: ±0.75% voltage regulation.
Environmental:
Operating Temperature Range: -40°C to +85°C.
Storage Temperature Range: -65°C to +150°C.
