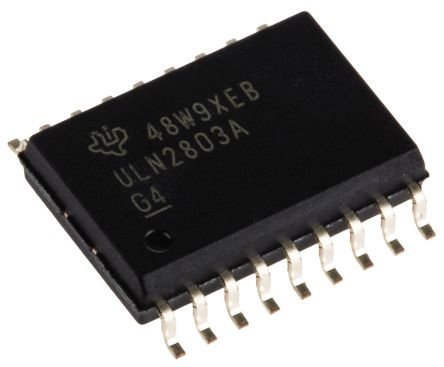

ULN2803ADW OCTAL NPN DARLINGTON PAIR 500MA 50V 18 PIN
SKU: INC-0163-C07
Sold by Select Automation
Final price R 25.09
R 21.82 excl. VAT
Availability: In Stock (43 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The ULN2803ADW is Texas Instruments' octal NPN Darlington transistor array.
Because of its high current gain capabilities, it is perfect for driving a range of loads, including stepper motors, solenoids, and relays.
Number of channels: 8 (octal).
NPN Darlington type transistor
Output Current (Per Channel): 500 mA
Collector-Emitter Voltage (Vce) is 50V.
Input Voltage (Vbe): 2.7V.
Package type: 18-pin SOIC.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
High Current Gain: Each Darlington pair can provide high current gain, making it suitable for various power applications.
Clamping Diode: Each output has an integrated clamping diode for switching inductive loads.
Saturation Voltage: Low saturation voltage ensures efficiency.
Performance:
Max Collector Current (Per Channel): 500mA
Max Collector-Emitter Voltage: 50V ensures robust performance under diverse conditions.
Input Current: Typical 1.35mA per channel.
