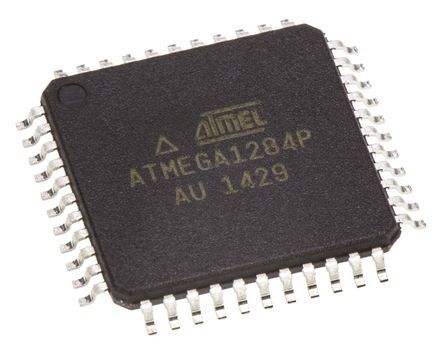

ATMEGA1284P-AU, 8bit AVR Microcontroller, 20MHz, 128 kB Flash, 44-Pin TQFP
SKU: INC-0168-C07
Sold by Select Automation
Final price R 288.06
R 250.49 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The ATMEGA8-16AU is an 8-bit AVR microcontroller developed by Microchip Technology.
It is widely utilized in a variety of embedded applications, ranging from consumer electronics to industrial automation, and is well-known for its performance and efficiency ratio.
Its 32-pin TQFP device allows for intricate circuitry while preserving a tiny footprint.
Core: 8-bit. AVR RISC.
Instruction Set: A comprehensive set of instructions featuring sophisticated addressing modes.
Operating Frequency: Supports up to 16MHz for fast data processing and execution.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Operating Voltage Range: 1.8V to 5.5V.
Maximum Operating Frequency: 20MHz.
Supply Current: Typical 1.8mA (Active Mode) at 1MHz, 1.8V.
Power-Saving Modes: Idle, ADC Noise Reduction, Power-Down, Power-Save, Standby, Extended Standby.
Memory:
Flash Memory: 128 kB In-System Programmable Flash.
EEPROM: 4 kB.
SRAM: 16 kB.
Endurance: 10,000 write/erase cycles for Flash, 100,000 write/erase cycles for EEPROM.
Performance:
I/O Lines: 32 programmable I/O lines.
Timers/Counters: Two 8-bit Timer/Counters and two 16-bit Timer/Counters with Compare Modes.
PWM Channels: Eight programmable PWM channels.
Analog-to-Digital Converter (ADC): 8-channel 10-bit ADC.
Digital-to-Analog Converter (DAC): Not available.
