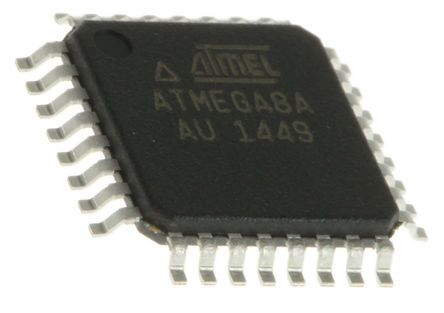

ATMEGA8A-AU, 8bit AVR Microcontroller, 16MHz, 8 kB Flash, 32-Pin TQFP
SKU: INC-0169-C07
Sold by Select Automation
Final price R 99.50
R 86.52 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
An 8-bit AVR microcontroller designed for performance and adaptability in a range of embedded applications is the ATMEGA8A-AU from Microchip Technology.
The microcontroller architecture is 8-bit AVR RISC.
The operating frequency is up to 16MHz.
Flash Memory: 8 kB of read-write-capable in-system programmable flash.
EEPROM size: 512 bytes.
SRAM: 1 kB.
Package type: 32-Pin TQFP (Thin Quad Flat Pack).
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Operating Voltage Range: 2.7V to 5.5V.
Max Operating Frequency: 16MHz.
Input Voltage Range: Standard CMOS thresholds.
Power Consumption: Low power consumption across various modes.
Performance:
I/O Ports: 23 programmable I/O lines with pull-up resistors.
Timers/Counters: Two 8-bit Timer/Counters and one 16-bit Timer/Counter.
PWM Channels: Three programmable PWM channels.
ADC Channels: Six-channel, 10-bit ADC.
Peripherals: Includes USART, SPI, and I²C interfaces.
Temperature Range: Operational from -40°C to 85°C.
