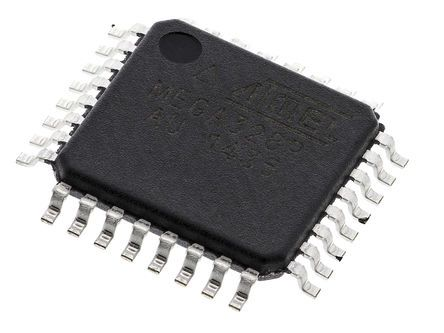

ATMEGA328P-AU
SKU: INC-0173-C07
Sold by Select Automation
Final price R 105.17
R 91.45 excl. VAT
Availability: In Stock (27 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This high-performance Microchip picoPower® 8-bit AVR® RISC-based microcontroller has the following features: a 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), a programmable watchdog timer with an internal oscillator, three flexible timer/counters with compare modes, internal and external interrupts, a serial programmable USART, a byte-oriented Two-Wire serial interface, an SPI serial port, a programmable watchdog timer with an internal oscillator, and five software-selectable power-saving modes.
The device operates between 1.8 and 5.5 volts.
By executing strong instructions in a single clock cycle, the device achieves throughputs of around one MIPS per MHz, balancing power consumption and processing performance.
The ATMEGA328P-AU is a versatile, high-performance 8-bit AVR microcontroller designed by Microchip Technology, known for its frugal power consumption and processing capabilities.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Core:
Architecture: 8-bit AVR RISC.
Clock Speed: Up to 20 MHz.
Memory:
Flash Memory: 32 kB.
EEPROM: 1 kB.
SRAM: 2 kB.
Peripherals and Features:
I/O Ports: 23 Programmable I/O Lines.
USART: Programmable serial communication.
SPI: Master/Slave SPI Serial Interface.
I²C Support: Two-wire Serial Interface (TWI).
ADC: 6-channel 10-bit ADC (analog-to-digital converter).
PWM: Six PWM channels.
Oscillators and Timers:
Timers:
Two 8-bit Timer/Counters with prescaler and compare modes.
One 16-bit Timer/Counter with prescaler, compare, and capture modes.
Watchdog Timer with separate on-chip oscillator.
Clock Sources:
Internal 8 MHz RC Oscillator (calibrated).
External clock sources supported.
Power:
Operating Voltage: 1.8V - 5.5V.
Power Consumption:
Active Mode: 0.2 mA at 1 MHz, 1.8V.
Power-down Mode: 0.1 µA.
Package:
Type: 32-Pin TQFP (Thin Quad Flat Pack).
Dimensions: 7 x 7 mm.
