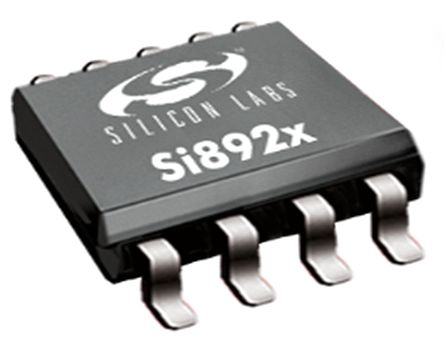

Si8920BC-IP Silicon Labs, Current Shunt Monitor Single Differential 8-Pin DIP

Description: Silicon Labs' Si8920BC-IP precision current shunt monitor is designed for accurate differential measurement and high-voltage isolation in a variety of demanding applications. Input Voltage Range: Designed to measure modest voltage differentials across a current shunt resistor. Supports a differential input range of approximately ±200 mV. Output characteristics: The setup determines whether the differential analogue output is amplified by 8.1x or 16.2x. The low signal latency (about 0.75 μs) ensures rapid response. Low output noise (0.10 mVrms over a 100 kHz bandwidth) ensures flawless signal integrity. High precision and stability. The input offset is incredibly low, at only 0.2 mV. Gain Error: Less than 0.5%, indicating high accuracy. Low offset drift of 1 μV/°C ensures reliable performance despite temperature changes. Gain Drift: 10 ppm/°C, ensuring accuracy throughout a broad temperature range. Nonlinearity: Excellent linearity at 0.025% Full Scale. Operational features: High Common Mode. Transient immunity is 75 kV/μs, making it resistant to high power switching conditions. Wide operating temperature range of -40°C to +125°C. Package: Available in an 8-Pin Dual In-line Package (DIP) for easy integration into a variety of designs.
