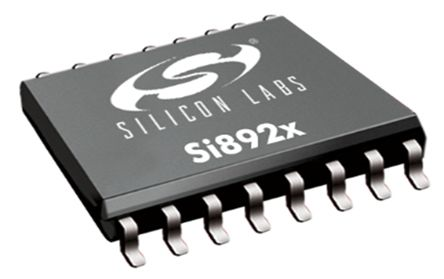

Si8920BD-IS Silicon Labs, Current Shunt Monitor Single Differential 16-Pin SOIC
SKU: INC-0176-C08
Sold by Select Automation
Final price R 111.32
R 96.80 excl. VAT
Availability: In Stock (48 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Silicon Labs' Si8920BD-IS current shunt monitor is a high-performance device that allows for precise current sensing and differential measurements.
High-Voltage Isolation:
Provides galvanic isolation, which protects low-voltage circuits from high-voltage spikes.
The strong common-mode transient immunity of 75 kV/μs allows accurate readings in high-power switching settings such as motor drives or inverters.
Input Voltage Range:
Supports a differential input range of approximately ±200 mV.
Output characteristics:
Differential analog output is amplified by 8.1 or 16.2x.
The signal latency is around 0.75 μs, ensuring rapid response.
The output noise level is 0.10 mVrms over a 100 kHz bandwidth.
Precision and stability:
Low input offset of 0.2 mV.
Less than 0.5% gain inaccuracy.
Offset drift: 1 μV/°C.
Gain drift: 10 ppm/°C.
Excellent linearity at 0.025% Full Scale.
Operating conditions:
Operating temperature range is -40°C to +125°C.
Package:
Type: 16-Pin SOIC.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Characteristics:
Input Voltage Range: ±200 mV differential input range.
Output:
Differential analog output amplified by 8.1x or 16.2x.
Signal delay of approximately 0.75 μs.
Output noise level of 0.10 mVrms over 100 kHz bandwidth.
Precision and Stability:
Input Offset: 0.2 mV.
Gain Error: Less than 0.5%.
Offset Drift: 1 μV/°C.
Gain Drift: 10 ppm/°C.
Nonlinearity: 0.025% Full Scale.
Operational Conditions:
Operating Temperature Range: -40°C to +125°C.
Common Mode Transient Immunity: 75 kV/μs, ensuring high accuracy in high power environments.
Package:
Type: 16-Pin SOIC (Small Outline Integrated Circuit).
