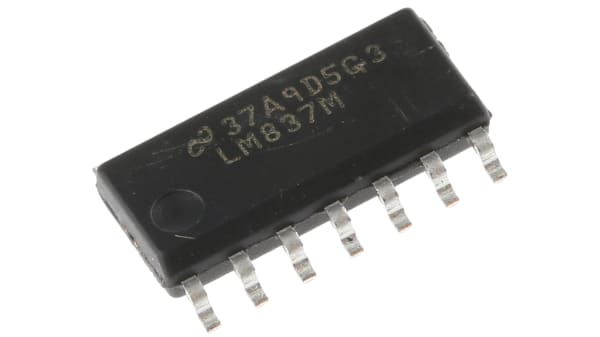

LM837M/NOPB Texas Instruments ,25MHz, 14-Pin
SKU: INC-0177-C08
Sold by Select Automation
Final price R 62.20
R 54.09 excl. VAT
Availability: In Stock (36 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Texas Instruments produces a high-performance quad operational amplifier called the LM837M/NOPB that is intended for uses where low noise and fast performance are essential.
Low Noise: Ideal for high-fidelity audio applications and instrumentation where low noise is essential.
High slew rate: Ideal for high-speed signal processing.
Wide Gain Bandwidth: Stable performance over a wide frequency range.
Drive loads up to 600Ω with ease.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Amplifier Type: Quad Op Amp.
Bandwidth: 25 MHz.
Slew Rate: 10 V/µs.
Output Current: ±40 mA (high output drive capability).
Input Offset Voltage: Typically 0.3 mV.
Input Noise Voltage: 4.5 nV/√Hz.
Total Harmonic Distortion: 0.0015% (low distortion for high fidelity audio applications).
Gain Bandwidth Product: 25 MHz.
