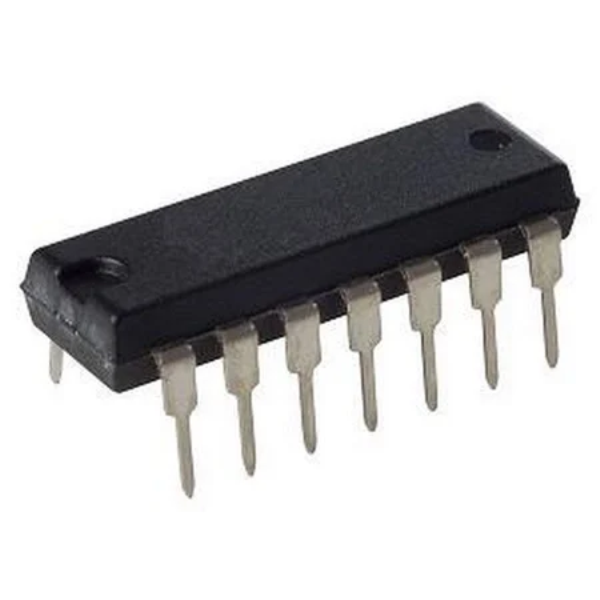

74LS00N Quad 2-Input NAND Gate 14-pin PDIP
SKU: INC-0181-C08
Sold by Select Automation
Final price R 13.70
R 11.91 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 74LS00N has four separate NAND gates, each with two inputs, designed to execute the logic NAND function.
This IC is commonly used in digital electronics to accomplish fundamental logic operations.
TTL Outputs: Compatible with transistor-transistor logic (TTL) outputs.
ESD protection exceeds 3500 volts.
Applications:
Implementing fundamental logic functions in digital circuitry.
Inverters (by reconfiguring NAND gates).
Digital signal processing.
Used in computers, laptops, servers, and networking equipment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Function: Quad 2-input NAND gate.
Package Type: 14-Pin PDIP (Plastic Dual In-line Package).
Operating Voltage: 4.75V to 5.25V.
Maximum Supply Voltage: 7V.
Maximum Output Current: 8mA per gate.
Input and Output Voltage Levels:
VIL (max): 0.8V.
VIH (min): 2V.
VOL (max): 0.4V.
VOH (min): 2.7V.
Typical Propagation Delay: 15ns per gate.
Rise and Fall Time: Typical 15ns.
Operating Temperature Range: 0°C to 70°C.
