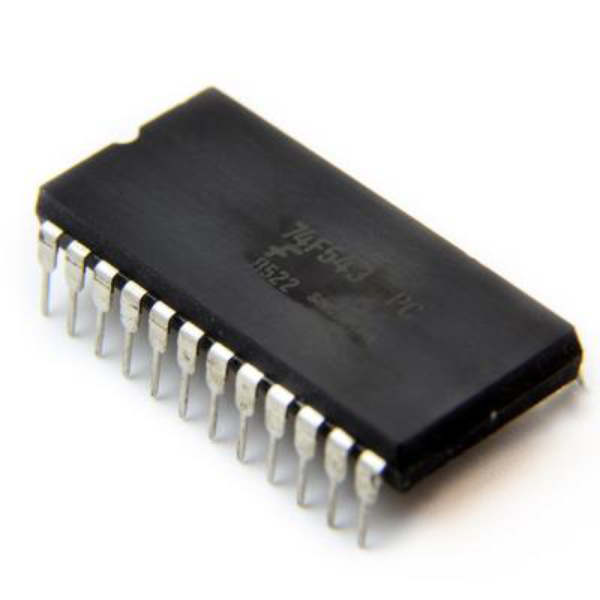

74F543DC octal registered transceiver IC 24-pin

Description: This integrated circuit includes two sets of D-type latches for temporarily storing data flowing in either direction. It has distinct controllers for data flow in each direction, making it suitable for a variety of applications. Functionality: This integrated circuit includes eight 2-way D-type latches that allow data to be sent and stored in both directions between buses. It has independent input and output controllers, as well as latch enable (LE) and output enable (OE) signals for accurate data handling. Package: Available in a dual-in-line package (DIP), which allows for easy integration into a variety of circuit boards. Voltage and Current: Typically runs at 5V, with sink current capacities of 24 mA (A outputs) and 64 mA (B outputs). Performance: Known for its low propagation latency of roughly 15 ns, which ensures rapid and dependable data handling required for high-speed applications. Compatibility: Serves as a compact solution that replaces the combined functionality of the 74F245 and 74F373 ICs, saving board space and simplifying design.
