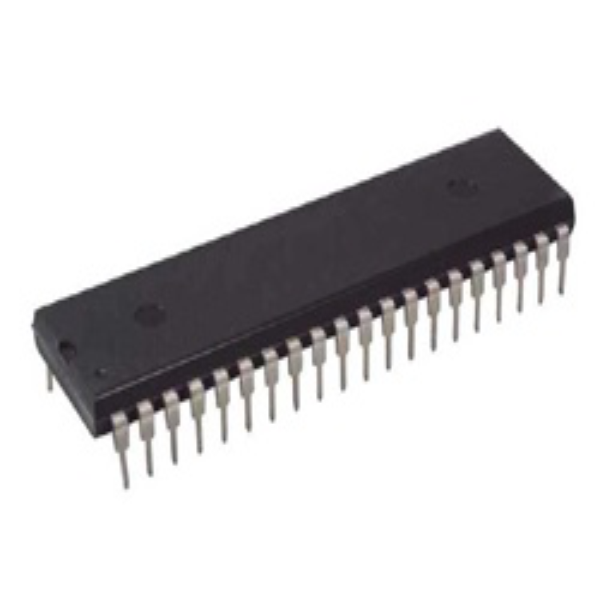

SN74LS612N memory mapper

Description: This integrated circuit is specifically intended to handle difficult memory mapping activities, which simplifies address decoding in system designs. Functionality: The IC includes an eight-input multiplexer and address latches that can convert a huge address space into a compact one. It converts four independent 8-bit input patterns into one of 16 potential 8-bit output patterns, making better use of memory. Package: Available as a 24-pin DIP (Dual Inline Package) for easy integration onto standard PCBs. Voltage and Current: Typically runs at 5V and has the standard current values for TTL logic devices. Performance: The IC has a typical access time of roughly 15 ns, enabling for quick and dependable operation. Control Inputs: Control inputs for mode selection and enabling are provided, allowing for a wide range of applications. Memory Mapping: Improves memory efficiency and simplifies address decoding in microprocessor-based systems or sophisticated digital circuits.
