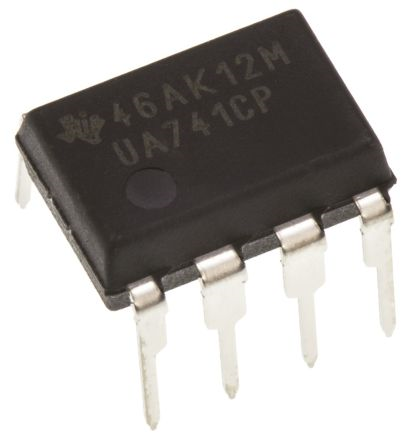

UA741CP Texas Instruments,, Op Amp, 1MHz, 8-Pin PDIP

Description: The UA741CP op-amp is known for its versatility and dependability. It is widely used in a variety of analogue applications, ranging from audio processing to instrumentation, and comes in an 8-pin PDIP (Plastic Dual In-line Package). The UA741CP amplifies voltage signals and can operate with a single supply range of 7V to 36V or dual sources of ±3.5V to ±18V. It has internal frequency correction and provides reliable operation in both open and closed loop setups. Package: Encased in an 8-pin PDIP (Plastic Dual In-line Package), it is simple to connect onto conventional PCBs and breadboards for prototyping and development. Performance: Gain Bandwidth Product: 1 MHz, providing wide frequency response for a variety of applications. Slew Rate: 0.5 V/µs for quick reaction to input changes. Input offset voltage is typically approximately 1 mV, which minimizes output inaccuracy. Input Bias Current: 80 nA ensures that the input requires the least amount of current. The Common Mode Rejection Ratio (CMRR) is 90 decibels, which lowers noise and interference from common-mode signals. Output: Capable of driving loads up to 25 mA, often via rail-to-rail output.
