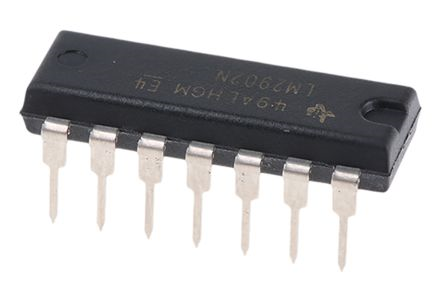

LM2902N Texas Instruments, Precision, Op Amp, 1.2MHz, 5 ? 24 V, 14-Pin PDIP

Description: The LM2902N is a Texas Instruments precision quad operational amplifier (Op Amp). It is known for its low power consumption, high performance, and versatility in a variety of analogue applications. Functionality: The LM2902N contains four separate op-amps in a single package and is intended for general-purpose use. It runs across a wide supply voltage range, making it appropriate for a variety of supply settings. The integrated circuit is packaged in a 14-pin PDIP (Plastic Dual In-line Package) that can be easily mounted on conventional PCBs. Voltage and current: The supplied voltage range is 5V to 24V (single) or ±2.5V to ±12V (dual). Input Bias Current: 20 nA, guaranteeing a low current draw at the input. Output Current: Each op-amp can drive loads of up to 10 mA. Performance: Gain Bandwidth Product: 1.2 MHz, which provides a broad frequency response suited for a variety of applications. Input offset voltage: Maximum of 2 mV to ensure precision in amplified signals. Slew Rate: 0.5 V/µs enables quick reaction to input changes. The Common Mode Rejection Ratio (CMRR) is 70 dB, which efficiently suppresses common mode transmissions. Power Supply Rejection Ratio (PSRR): 80 dB, which ensures performance despite power supply changes. Temperature Range: Reliable operation in temperatures ranging from -40°C to +85°C, making it suited for both commercial and industrial environments.
