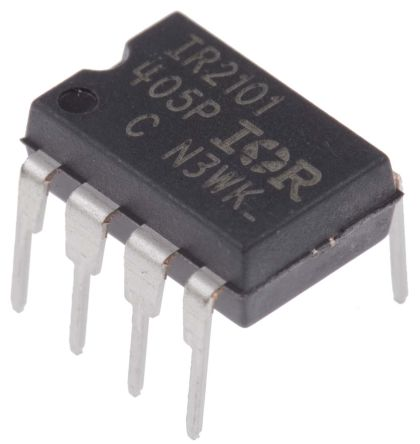

IR2101PBF Dual High and Low Side MOSFET Power Driver, 0.36A, 10-20 V 8-Pin, PDIP
SKU: INC-0193-C08
Sold by Select Automation
Final price R 182.34
R 158.56 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Infineon's IR2101PBF is a high-speed, high-voltage dual high and low side MOSFET driver.
It's intended to drive N-channel MOSFETs or IGBTs in a half-bridge configuration, making it useful for a variety of power management and motor control applications.
High-Speed Operation: Provides efficient switching with minimal delay.
Bootstrap Operation: Designed for bootstrap operations, making it ideal for driving high-side MOSFETs.
Matched Propagation Delays: Both high and low-side drivers have matched propagation delays, which improves synchronous operation.
Ruggedized monolithic construction offers excellent reliability and durability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Functionality: Dual high and low side driver.
Package Type: 8-Pin PDIP (Plastic Dual In-line Package).
Supply Voltage Range: 10V - 20V.
Output Current Capacity:
High Side: 0.36A (source), 0.75A (sink).
Low Side: 0.36A (source), 0.75A (sink).
Input Logic Level: Compatible with 3.3V, 5V, and 15V logic.
Operating Voltage: Up to 600V floating channel capability.
Propogation Delay: Typical 160 ns.
Undervoltage Lockout: Protects both high and low-side drivers from malfunction due to low supply voltage.
Operating Temperature Range: -40°C to +125°C.
Package Power Dissipation: Up to 1 W (for 8-lead PDIP).
