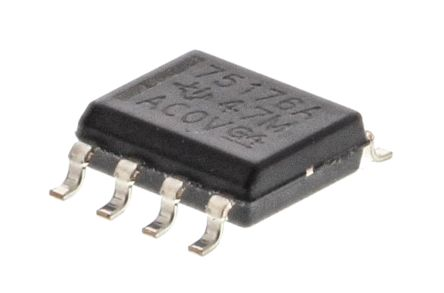

SN75176AD, Line Transceiver, RS-485, 5 V, 8-Pin SOIC
SKU: INC-0196-C08
Sold by Select Automation
Final price R 170.86
R 148.57 excl. VAT
Availability: In Stock (100 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Functionality: The SN75176AD is a differential line transceiver that can transmit data at speeds of up to 10Mbps.
The 8-pin SOIC (Small Outline Integrated Circuit) package is surface-mountable.
Voltage Range: Runs on a single 5V source.
Input and output: Differential inputs and outputs improve noise immunity and signal integrity.
Wide Supply Voltage Range: Works with a reliable 5V supply.
Data Transmission Speed: Up to 10 Mbps.
Short Circuit Protection: Built-in protection against driver output short circuits.
Low Power Consumption: Efficient power consumption makes it suited for battery-powered applications.
Electrostatic Discharge (ESD) Protection: Enables dependable operation in demanding settings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Functionality: Differential line transceiver for balanced data transmission.
Data Rate: Up to 10 Mbps.
Supply Voltage Range: 5V ±10%.
Driver Output Voltage Range: -7V to +12V.
Receiver Input Voltage Range: -7V to +12V.
Differential Output Voltage: ±1.5V minimum.
Driver Output Current: ±60 mA (max).
Input Threshold Voltage: Nominal 200 mV.
Receiver Input Resistance: 12 kΩ.
Hysteresis: 50 mV.
Low Power Consumption: 40 mW.
Operating Temperature Range: -40°C to +85°C.
ESD Protection: ±15 kV on driver output pins.
Package: 8-Pin SOIC (Small Outline Integrated Circuit).
