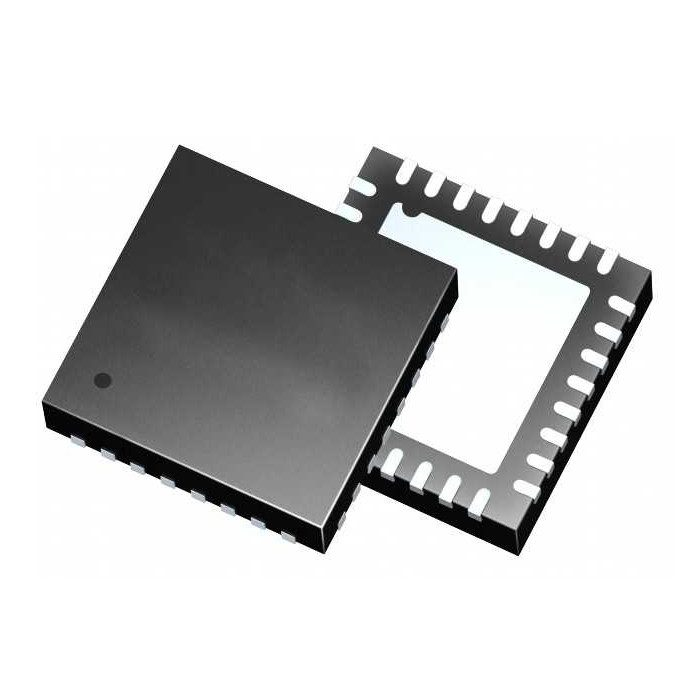

ATMEGA 16U2-MU (R)
SKU: INC-0198-C08
Sold by Select Automation
Final price R 38.86
R 33.79 excl. VAT
Availability: In Stock (96 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The ATMEGA16U2-MU is a flexible 8-bit microcontroller from Microchip Technology.
It's a member of the AVR family, which is noted for its great performance and low power consumption.
This microcontroller is commonly used in applications that require USB connectivity and general-purpose processing.
Advanced RISC Architecture: A powerful instruction set for efficient programming.
USB 2.0 Compatibility: Full-speed USB device module with an interrupt upon transfer completion.
On-Chip Debugging: The debug WIRE interface allows for on-chip debugging and programming.
Timers include two 8-bit timers and one 16-bit timer/counter.
Power Management: Provides several power-saving modes, including idle, power-save, and power-down.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Core: AVR 8-bit RISC.
Flash Memory: 16 KB.
SRAM: 512 Bytes.
EEPROM: 512 Bytes.
Clock Speed: Up to 16 MHz.
Number of I/O Pins: 22.
Operating Voltage Range: 2.7V to 5.5V.
Package: 32-VQFN (5x5mm).
USB 2.0 Full-Speed Device: Includes capabilities for USB communication with data transfer rates up to 12 Mbit/s.
