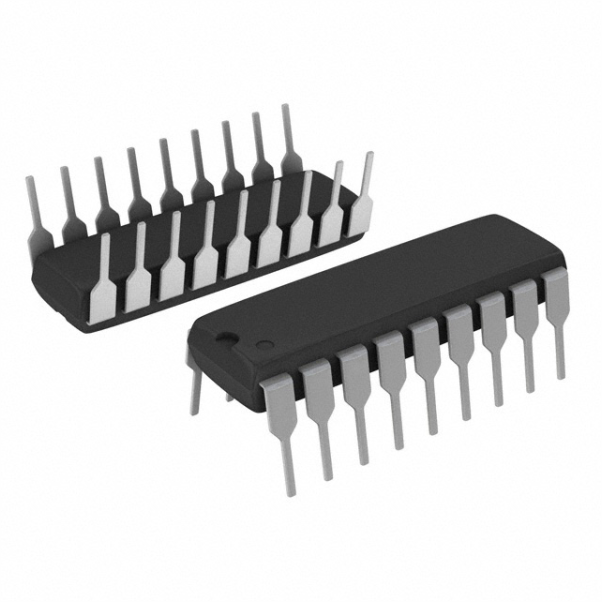

UDN2981A-T Power Switch/Driver 1:1 Bipolar 500mA 18-DIP
SKU: INC-0209-C09
Sold by Select Automation
Final price R 57.93
R 50.37 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
An integrated circuit (IC), sometimes known as a microchip or just a chip, is a miniature electronic circuit composed of many transistors, resistors, capacitors, and other components implanted on a small piece of semiconductor material, usually silicon.
These tiny circuits are at the heart of practically all modern electronic gadgets, allowing for extensive functionality while taking up very little space.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Switch Type: General Purpose.
Number of Outputs: 8.
Ratio - Input: Output: 1:1.
Output Configuration: High Side.
Output Type: Bipolar.
Interface: On/Off.
Voltage – Load: 5V ~ 50V.
Current - Output (Max): 500mA.
Input Type: Non-Inverting.
Operating Temperature: -20°C ~ 85°C (TA).
Mounting Type: Through Hole.
Supplier Device Package: 18-DIP.
