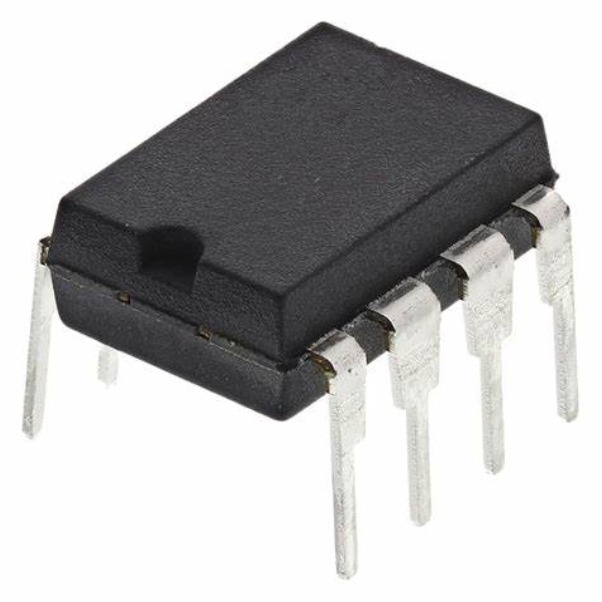

LF 411CP Precision Amplifiers JFET In Precision
SKU: INC-0225-C09
Sold by Select Automation
Final price R 66.77
R 58.06 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
An integrated circuit (IC), sometimes known as a microchip or just a chip, is a miniature electronic circuit composed of many transistors, resistors, capacitors, and other components implanted on a small piece of semiconductor material, usually silicon.
These tiny circuits are at the heart of practically all modern electronic gadgets, allowing for extensive functionality while taking up very little space.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of Channels: 1 Channel.
GBP - Gain Bandwidth Product: 8 MHz.
SR - Slew Rate: 25 V/us .
Vos - Input Offset Voltage: 500 uV.
Ib - Input Bias Current: 60 pA.
Supply Voltage - Max: 15 V.
Supply Voltage - Min: - 15 V.
Operating Supply Current: 2.5 mA.
CMRR - Common Mode Rejection Ratio: 100 Db.
en - Input Voltage Noise Density: 18 nV/sqrt Hz.
Package/Case: PDIP-8.
Mounting Style: Through Hole.
Minimum Operating Temperature: 0 °C.
Maximum Operating Temperature: + 70 °C.
Amplifier Type: JFET Amplifier.
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V.
In - Input Noise Current Density: 0.01 pA/sqrt Hz.
Height: 4.57 mm.
Length: 9.81 mm.
Maximum Dual Supply Voltage: +/- 18 V.
Minimum Dual Supply Voltage: +/- 3.5 V.
Operating Supply Voltage: 7 V to 36 V, +/- 3.5 V to +/- 18 V.
Pd - Power Dissipation: 500 mW (1/2 W).
Product Type: Precision Amplifiers.
