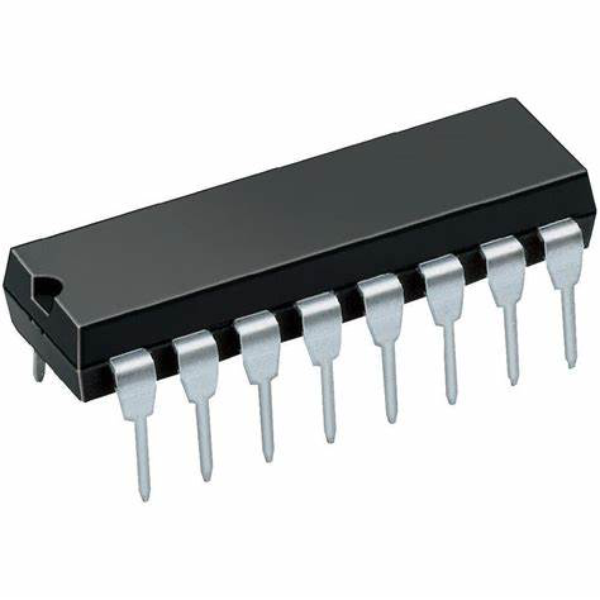

CD4046BE Phase Locked Loops - PLL Micropower PLL IC
SKU: INC-0232-C09
Sold by Select Automation
Final price R 9.75
R 8.48 excl. VAT
Availability: In Stock (25 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
An integrated circuit (IC), sometimes known as a microchip or just a chip, is a miniature electronic circuit composed of many transistors, resistors, capacitors, and other components implanted on a small piece of semiconductor material, usually silicon.
These tiny circuits are at the heart of practically all modern electronic gadgets, allowing for extensive functionality while taking up very little space.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of Circuits: 1 Circuit.
Maximum Input Frequency: 2.4 MHz.
Minimum Input Frequency: 300 kHz.
Output Frequency Range: 300 kHz to 2.4 MHz.
Supply Voltage - Max: 18 V.
Supply Voltage - Min: 3 V.
Technology: Si.
Minimum Operating Temperature: - 55 °C.
Maximum Operating Temperature: + 125 °C.
Mounting Style: Through Hole.
Case: PDIP-16.
Height: 4.57 mm.
Length: 19.3 mm.
Operating Supply Voltage: 3 V to 18 V.
Output Level: CMOS.
Product Type: PLLs - Phase Locked Loops.
