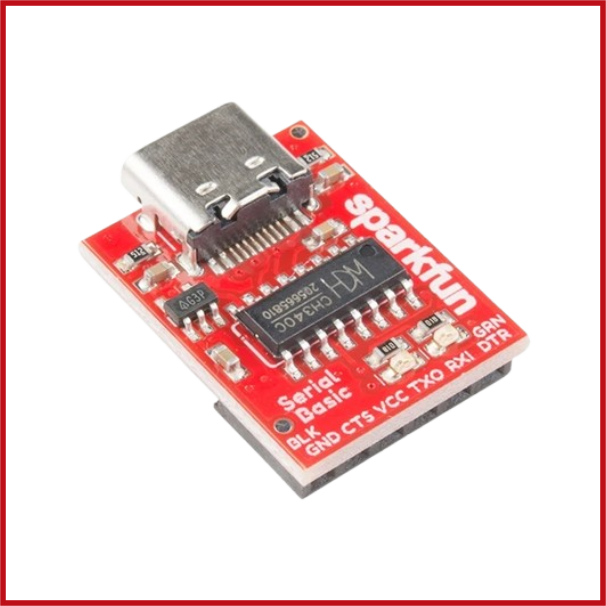

CH340C USB to UART TTL Serial Converter IC (Integrated Oscillator)
SKU: INC-0449-C09
Sold by Select Automation
Final price R 17.25
R 15.00 excl. VAT
Availability: In Stock (30 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The CH340C is a low-cost USB-to-UART (TTL) bridge IC designed by WCH (Nanjing QinHeng Electronics).
It serves as a dependable interface between a USB host and a serial UART device, allowing for simple communication with microcontrollers, development boards, embedded systems, and serial peripherals.
Unlike the CH340G, the CH340C has an internal crystal oscillator, which eliminates the requirement for an external 12 MHz crystal and reduces the component count.
The gadget provides full-speed USB 2.0 connectivity and works with Windows, Linux, and macOS via widely available drivers.
The CH340C is frequently utilized in Arduino-compatible boards, ESP8266 and ESP32 development boards, USB-to-serial adapters, industrial controls, and embedded applications that need USB serial connectivity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: USB to UART Bridge IC.
Model: CH340C.
Manufacturer: WCH (Nanjing QinHeng Electronics).
USB Standard: USB 2.0 Full-Speed (12 Mbps).
Serial Interface: UART (TTL Level).
Baud Rate: 50 bps to 2 Mbps.
Integrated Oscillator: Yes.
Supply Voltage: 3.3V–5V DC.
Logic Voltage: 3.3V or 5V.
Communication Signals: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI.
Package Options: SOP-16, SSOP-20.
Operating Temperature: -40°C to +85°C.
