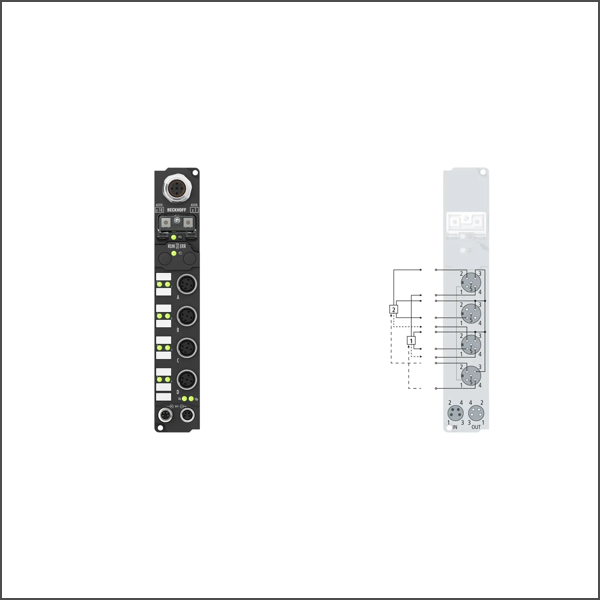

IP1502-B520 Fieldbus Box
SKU: IP1502-B520
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The counter module has two fast counters running at up to 100 kHz. It counts binary pulses, and transmits the counter state to the higher-level automation unit. Number of I/O stations: 63.
Buy currently uses Select Automation shop pricing and checkout.
Digital peripheral signals: according to I/O type
Analog peripheral signals: according to I/O type
DeviceNet type: according to I/O type
Configuration possibility : through KS2000 or the controller (explicit messaging)
Data transfer rates: automatic detection up to 500 kbaud
Bus interface: 1 x M12 plug, 5-pin
Power supply: control voltage: 24 V DC (-15 %/+20 %); load voltage: according to I/O type
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Box supply current: 45 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current: according to I/O type
Electrical isolation: control voltage/fieldbus: 500 V, control voltage/inputs or outputs: according to I/O type
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
