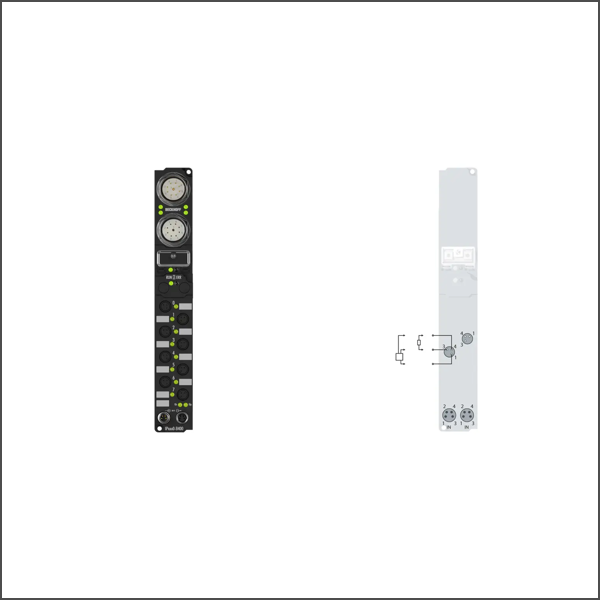

IP2040-B400 Fieldbus Box
SKU: IP2040-B400
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The IP2040-Bxxx digital output connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 2 A each, although the total current is limited to 12 A. Dimensions (W x H x D): 30 mm x 210 mm x 26.5 mm.
Buy currently uses Select Automation shop pricing and checkout.
Digital peripheral signals: according to I/O type
Analog peripheral signals: according to I/O type
Configuration possibility: via KS2000
Bus interface: 1 x M23 female socket 9-pin, 1 x M23 male socket 9-pin
Power supply: control voltage: 24 V DC (20…29 V DC); load voltage: according to I/O type
Power supply connection: feed: 2 x M8 male socket, 4-pin; no downstream connection
Box supply current: 85 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current: according to I/O type
Electrical isolation: control voltage/fieldbus: no, control voltage/inputs or outputs: according to I/O type
Weight: approx. 350 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
