Signal Converter SSI - Parallel IP210
SKU: IP210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

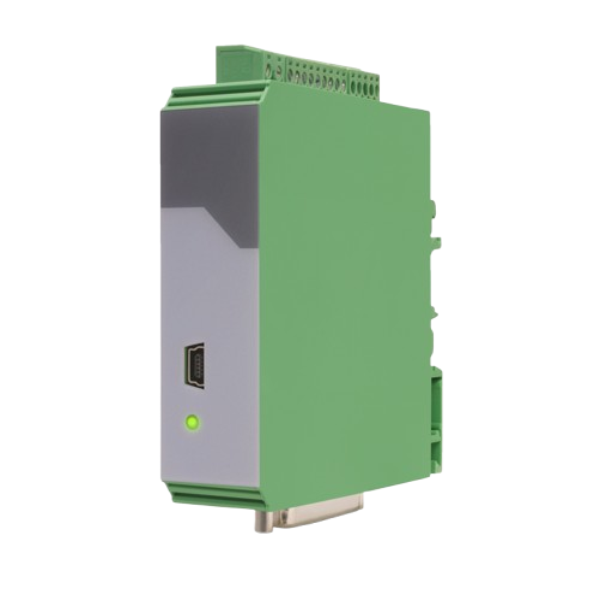

Synchronous Serial Interface (SSI) signals can be precisely and swiftly converted into parallel binary, grey code, or BCD format with the Motrona IP210 Signal Converter.
It is an effective instrument for a range of industrial uses where precise signal conversion is necessary.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
SSI Input: DATA+, DATA-, CLOCK+, CLOCK- up to 32-bit.
Impulse Inputs: A, B (HTL), A, /A, B, /B (RS422, HTL).
Control Inputs: 3 control inputs (Hold) for PNP signals [10 ... 30 VDC].
Input Frequency: Up to 1 MHz.
Output: 25-bit parallel output in BCD, binary, or grey code format.
Power Supply: 18 ... 30 VDC.
Housing: Compact housing for mounting on 35 mm top-hat rail (EN 60715).
