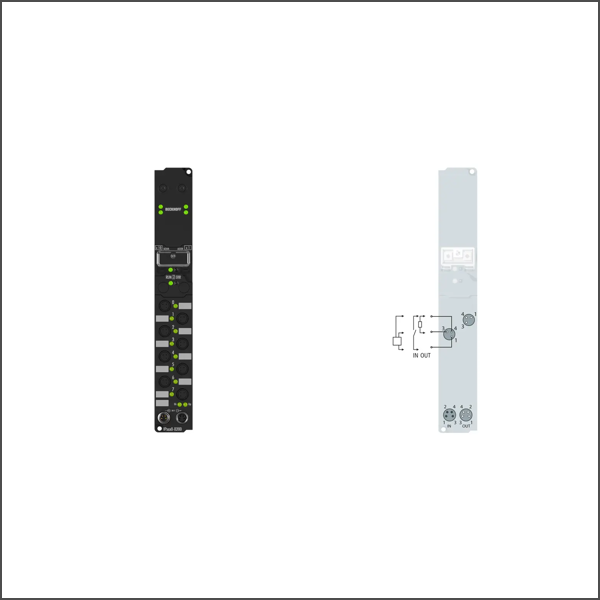

IP2300-B200 Fieldbus Box
SKU: IP2300-B200
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The IP2300-Bxxx digital I/O module combines four digital inputs and four digital outputs in one device.Dimensions (W x H x D) 30 mm x 210 mm x 26.5 mm.Number of I/O stations: 254.
Buy currently uses Select Automation shop pricing and checkout.
Digital peripheral signals: according to I/O type
Analog peripheral signals: according to I/O type
Configuration possibility : via KS2000 or the controller
Data transfer rates: 2.5 Mbaud
Bus interface: 2 x fiber-optic socket for plug ZS1020-0010
Power supply: control voltage: 24 V DC (-15 %/+20 %); load voltage: according to I/O type
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Auxiliary power current: according to I/O type
Electrical isolation: control voltage/fieldbus: yes, control voltage/inputs or outputs: according to I/O type
Weight: approx. 250 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
