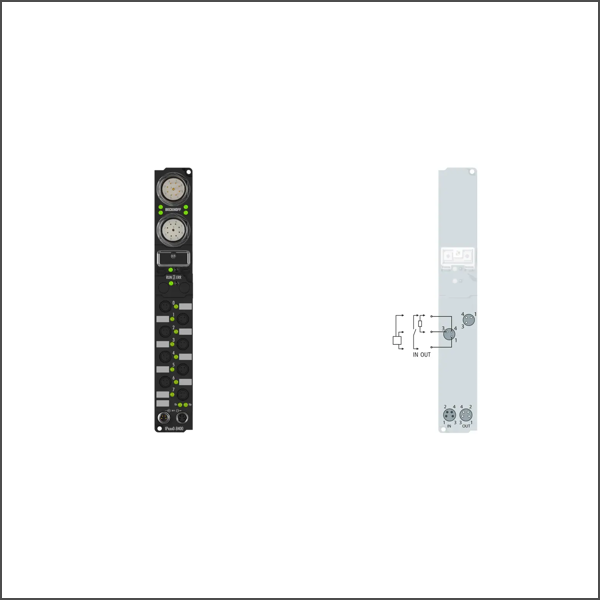

IP2310-B400 Fieldbus Box
SKU: IP2310-B400
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The IP2310-Bxxx digital I/O module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit-proof and protected against inverse polarity. Dimensions (W x H x D): 30 mm x 210 mm x 26.5 mm. Number of I/O stations: depending on the master, max. 256.
Buy currently uses Select Automation shop pricing and checkout.
Digital peripheral signals: according to I/O type
Analog peripheral signals: according to I/O type
Configuration possibility : via KS2000
Bus interface: 1 x M23 female socket 9-pin, 1 x M23 male socket 9-pin
Power supply: control voltage: 24 V DC (20…29 V DC); load voltage: according to I/O type
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Box supply current: 85 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current: according to I/O type
Electrical isolation: control voltage/fieldbus: no, control voltage/inputs or outputs: according to I/O type
Weight: approx. 350 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
