Signal Converter SSI Absolute - RS232 - Parallel IP251
SKU: IP251
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

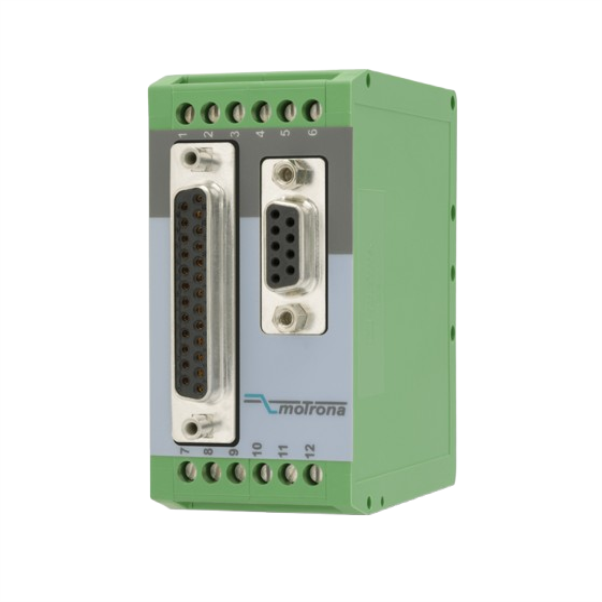

Synchronous Serial Interface (SSI) signals from absolute encoders or sensors can be converted into parallel binary, grey code, or BCD forms using the Motrona IP251 Signal Converter.
Additionally, it can transform RS232 serial data into one of these parallel formats.
This converter has a 25-pin and a 9-pin SUB-D socket, 12 screw terminals, and a small DIN rail mountable chassis.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
SSI Input: DATA+, DATA-, CLOCK+, CLOCK- up to 25-bit.
Control Input: Hold for PNP signals [10 ... 30 VDC].
Output: 25-bit parallel output in BCD, binary, or grey code format.
Clock Frequency: Up to 1 MHz.
Power Supply: 18 ... 30 VDC.
Housing: Snap-on housing for top hat rail (EN 60715).
