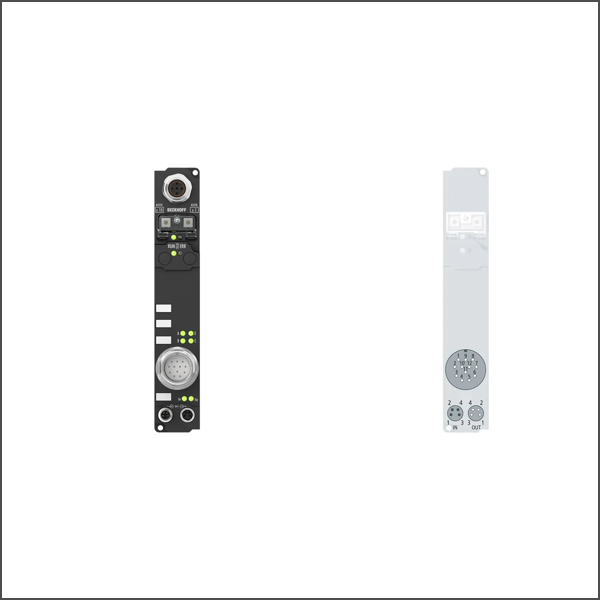

IP5009-B310 Fieldbus Box
SKU: IP5009-B310
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The IP5009 SSI interface module allows an SSI encoder to be connected directly. The encoder is powered via the SSI interface. Dimensions (W x H x D): 30 mm x 175 mm x 26.5 mm. Number of I/O stations: 100 with repeater.
Buy currently uses Select Automation shop pricing and checkout.
Configuration possibility: via KS2000 or the controller, DP-V1 extensions are supported
Data transfer rates: automatic detection up to 12 Mbaud
Bus interface: 1 x M12 socket, 5-pin, B-coded
Power supply: control voltage: 24 V DC (-15 %/+20 %); load voltage: according to I/O type
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Box supply current: 85 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current: according to I/O type
Electrical isolation: control voltage/fieldbus: no, control voltage/inputs or outputs: according to I/O type
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
